Skateboard Lamp Design
The Client
As a passionate skater, our client Bret has beat up his fair share of “retired” skateboard decks. Despite their worn appearance, each of his old decks represented a specific time in his life and he wasn’t quite ready to let them go. Instead, Bret wanted to find a creative way to recycle them into a useful new product that he could manufacture and sell. He came up with a brilliant way to reuse and display his old skate decks— turn them into lamps!
The Challenge
Bret had a clear vision for how he wanted his skateboard lamps to look but did not have the product engineering and development resources on his own to build a reliable prototype that he could put on display and show to potential customers. He needed a product design company that could incorporate all of the visual design elements that he had in mind into a properly engineered, UL-certified product ready for manufacturing. The design challenges he wanted to solve:
- Works with all standard skateboard decks without modification
- Cords must be hidden
- Easy to install at home
The Solution
Kickr Design met with Bret, learned about his project, and provided him with a Free Project Outline & Estimate that highlighted a combination of industrial design, electronics, engineering, and prototyping services to help him achieve his project goals. With a clear path forward, we designed & built a fully functional prototype that interfaces with a skate deck and delivered it to him so he could try outfitting it to his other decks. The prototype was built and delivered within his budget, in compliance with UL standards, and with a path forward for manufacturing at scale.
- Concept Sketches
- CAD
- Electronics
- Prototyping (3D Printing)
The Development Process
Highlights from this project:

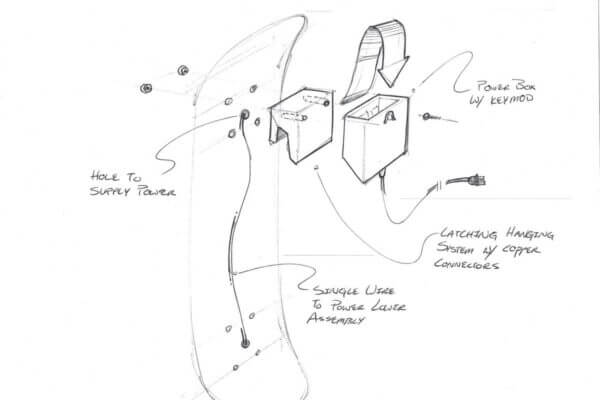

Concept Sketches – Wall Mount Assembly
Some initial drawings for the wall mount mechanism and method

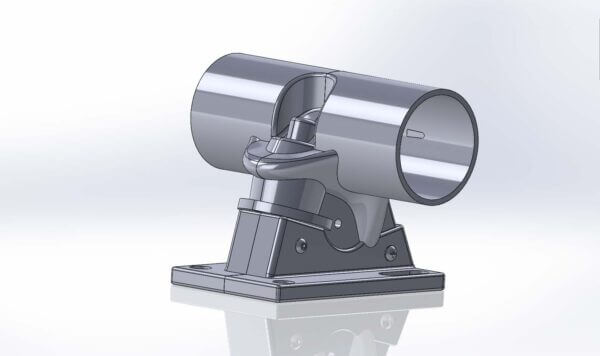

CAD – Truck Socket
CAD file generated for 3D printing of the truck socket component

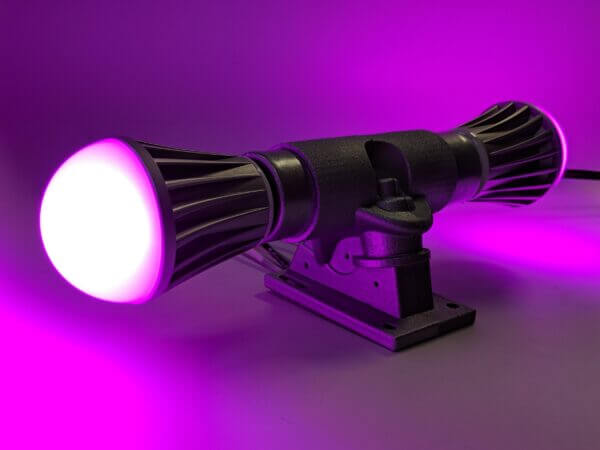

Testing Truck Socket Electronics
3D printed truck enclosure with off-the-shelf UL certified light bulb socket. Tested with LED light bulbs.

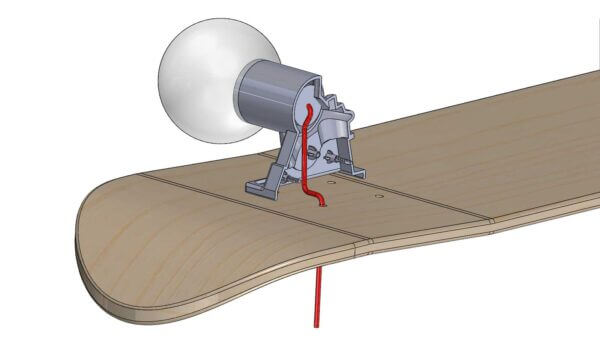

CAD – Truck Enclosure Cross Section
Design of truck enclosure to hold light bulb socket and wiring

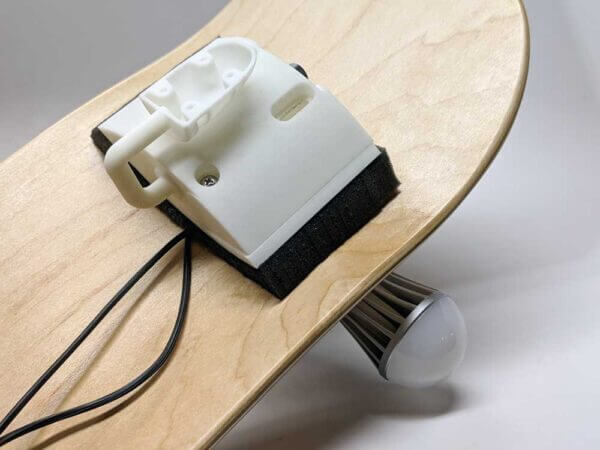

Wall Mount Assembly Prototype
Fully assembled wall mount that fits on any profile of skateboard with standard hole positions

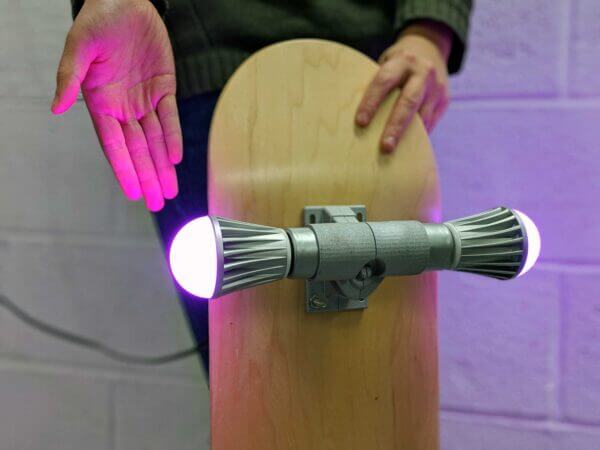

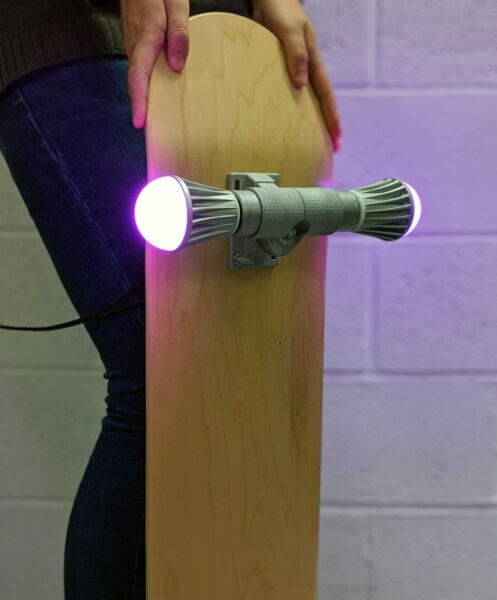

Assembled Prototype Testing
Fully assembled prototype testing using LED light bulbs
The Results
Bret’s new skateboard lamp prototype accepts standard light bulbs and can be mounted to any deck profile. The design consists of 2 main components: sockets that look like skate trucks on the underside of the deck and a wall-mounting fixture on the reverse side. Assembly is easy— just sandwich the deck between the socket and mount components and tighten with a bolt that’s fed through the pre-existing holes in the deck. Bret saved money by using off-the-shelf UL-certified components that are hidden and embedded in the 3D-printed parts to keep things looking neat and tidy. Bret is stoked with his prototype and is currently moving forward with manufacturing his product with us at scale.
